Working With Real Instruments

Introduction

For ORNL-facility instruments which use the ADARA system, it is possible to record and playback an ADARA-packet stream. This ADARA-packet replay utility was developed to allow manual debugging of the live-data listener and the live-reduction workflow. The utility should also prove useful for debugging almost any live-data system in a deterministic manner, even when disconnected from the instrument network or when the beam is down.

When recording a stream, ADARA packets are saved to files. There can be many packets per file, or only one packet per file, depending on the record.file_output setting in adara_player_conf.yml. Usually it will be convenient to save the packet files for a complete run (or part of a run) to a single directory. For debugging or diagnostic purposes, often these packet files can be obtained directly from the DAS group (, and in this case only the utility’s playback functionality would be used). When packet-files are obtained directly, it will help if they retain their original modification times. Moving such files with mv does this automatically, but cp --preserve=timestamps must be used if the files are copied. Files like this, which have been saved to the ADARA cache by the ADARA system, contain redundant packet information, and usually will need to be analyzed in some detail in order to arrive at a useful playback sequence.

How to use and modify Facilities.xml

Mantid reads the Facilities.xml file to determine how to access each instrument. The instrument’s network address is either in internet-socket (INET) form, as <IPV4: port> or <IPV6: port>, or in Unix-domain socket (UDS) form, as any accessible file-path on the filesystem. For example, in adara_player_conf.yml, note that the default socket address for the playback server resolves to ${XDG_RUNTIME_DIR}/sock-adara_player (see the official XDG Base Directory Specification). For testing, a loopback address such as 127.0.0.1:12345 may be used, but for security reasons, especially on multi-user systems, the UDS form should generally be preferred.

When the ADARA-packet replay utility is used in playback mode, it replaces the real instrument. In this mode it may be necessary to replace the instrument’s address in Facilities.xml with the server address that will be specified either in adara_player_conf.yml or on the commandline. It is also possible to simply override the instrument’s address, using the Address argument of StartLiveData. Then, when the client application performs its handshaking process to connect to the instrument and transfer data, it interacts with the ADARA-packet replay utility instead of the real instrument.

When the ADARA-packet replay utility is used in record mode, the real instrument will usually still be used, and the utility functions as a proxy. As for playback mode, the instrument’s address in Facilities.xml may be replaced with the server address, but in addition, for record mode it is necessary to provide the original instrument address as the source address, either in adara_player_conf.yml or on the commandline. In this situation, when the client application connects to the instrument, it interacts with the ADARA-packet replay utility, which in this case connects to the real instrument as a proxy for the client application.

ADARA-server and listener handshaking protocol

Both the SNSLiveEventDataListener, and the ADARA-server itself, implement a handshaking protocol. In its simplest form, this protocol involves expecting a single CLIENT_HELLO_TYPE packet from the client at the start of each session. This hello-packet contains information about the required start-time for the requested data.

Note that this ``CLIENT_HELLO_TYPE`` handshaking is the *only* handshaking presently implemented by the ADARA-packet replay utility. Further, the utility does not change its behavior based on the time information present in the hello-packet, nor does it filter out duplicate DEVICE_DESC_TYPE packets, if these are present. Both of these behaviors would be useful extensions to the utility’s implementation.

Recording a packet stream

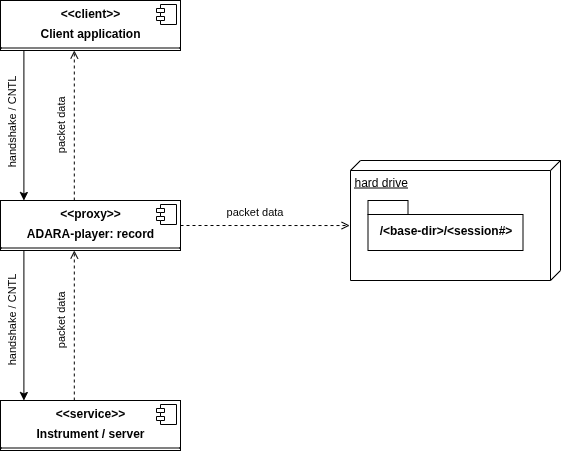

ADARA-player: diagram of components used in record mode

ADARA-player: components used in record mode

  1. Set up Facilities.xml:

    • First of all, choose a suitable server address or note the default (see adara_player_conf.yml). Next, specify a proxy instrument in Facilities.xml. In most cases, a useful approach will be to comment out the existing instrument, copy its details to an adjacent location, and then modify the address to match the server address.

  2. Set up adara_player_conf.yml:

    • make sure the server.address value matches that used in Facilities.xml;

    • fill in the source address using the original instrument address;

  3. Create a base directory for the saved packet data:

    • Note that each time the client application connects to the proxy, a session subdirectory will be created under this base directory.

  4. In its own console, start the proxy server:

    adara_player --config <path to config file> --record <base directory path>

  5. In another console, start your client application (e.g. workbench or your live-reduce Python script).

  6. When you’re done recording data, type CNTL-C in the proxy server’s console.

Playing a packet-stream back

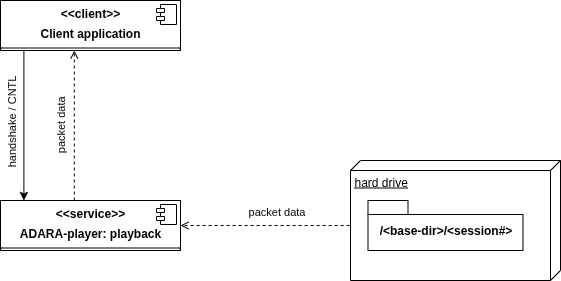

ADARA-player: diagram of components used in playback mode

ADARA-player: components used in playback mode

  1. Set up Facilities.xml:

    • First of all, choose a suitable server address or note the default (see adara_player_conf.yml). Next, specify a proxy instrument in Facilities.xml. In most cases, a useful approach will be to comment out the existing instrument, copy its details to an adjacent location, and then modify the address to match the server address.

  2. Set up adara_player_conf.yml:

    • make sure the server.address value matches that used in Facilities.xml;

    • in playback mode, the source address will not be used, so it’s OK if it’s still the original instrument address;

    • decide on the playback ordering scheme: playback.packet_ordering:

      • if the data was recorded using the ADARA-packet replay utility, this should be sequence_number;

      • OTHERWISE it should usually be yaml;

      • Specifying any other value for the playback.packet_ordering should be treated as experimental.

  3. Figure out the details of the your data source directories. The playback data can be specified by any of:

    • Specifying a sessions.yml file, which includes a base_path, and then a list of sessions and lists of files for each session. This YAML file would usually be played back in the order of its sessions and file lists;

    • specifying the path to the base directory (which should contain session subdirectories, as noted previously);

    • OR specifying a Unix glob pattern for the input packet files (note that braces may be used to form this pattern);

  4. In its own console, start the server, in playback mode:

    adara_player --config <path to config file> [--files <sessions.yml> | [<base directory path> | <Unix-format glob spec>]]

  5. In another console, start your client application (e.g. workbench or your live-reduce Python script). In playback mode, the client will be able to successfully connect as many times as there are session subdirectories. (For specific tests, you might want to create additional session subdirectories with duplicate content. In this case, it’s OK just to create a link: ln -s <existing session directory> <new session link>, for each required session. For example ln -s <base directory>/0001 <base directory>/0022, will allow session 22 to replay what was originally recorded as session 1.)

  6. When you’re done with the playback, type CNTL-C in the playback server’s console.

Packet ordering during playback mode

If the stream being played back was saved using record, and record.file_output was set to single_packet (in adara_player_conf.yml), the playback order will be uniquely determined by the <sequence number> part of each packet’s filename. During playback, each time the client application connects to the server, a session subdirectory will be referenced, and the packet files in that directory will be played back in sequence-number order. Any time it’s necessary to programmatically create a stream for deterministic playback, e.g. using a Python script for some specific debugging scenario, this same directory and file naming scheme should be used. Alternatively, a YAML file containing a <base directory> and a <sessions> list of files lists can be used. In any of these cases, it’s possible to playback these session files using another playback.packet_ordering setting besides sequence_number or yaml, but that’s not recommended.

There are several ways to control the playback order of a packet stream. Although an ADARA packet stream is somewhat robust to changes in the ordering of the packets in the stream, how well this works depends on the details of the specific packet types. (For example, changing where a <run status> packet appears in the stream is probably a bad idea!) The player utility offers several distinct ways to control packet playback order (as specified in adara_player_conf.yml using the playback.packet_ordering key):

  • yaml: the order of the packet files is specified in the sessions.yml file; or, if no sessions.yml file has been specified, the operating system’s directory-listing order will be used;

  • sequence_number: the packet file’s sequence number will be used (as generated by the record utility); this setting is recommended when the packet files were generated using record mode, OR when creating new packet files, or re-ordering packet files for special tests. Using the YAML sessions.yml file is usually a better approach when not using record mode.

  • mtime: the packet file’s modification time will be used;

  • timestamp: the ADARA-packet timestamp of the packet (or of the first packet in a file if it contains more than one); this should be used only in very special cases, or when there’s no other alternative. The main issue with using this approach is that often the ADARA system starts playback by inserting configuration (or reference) packets that may have been created months ago. In general, the timestamps of these packets will not be updated for the new stream. Since this type of configuration packet may be inserted at multiple locations in the stream, the packet-timestamp based playback order does not end up corresponding to the playback order of the original stream. (To solve this issue: use summarize mode, and then fill in a sessions.yml file!)

Using summarize mode

Given a set of files containing ADARA-packet data, often it can be difficult to figure out how to set up a useful playback session. This is especially true if the files contain multiple ADARA-packets per file. summarize mode was implemented in order to provide additional information in this scenario. To obtain a summary of the packet data contained in the files, the commandline syntax is:

adara_player --config <path to config file> --summarize <base directory path or glob spec>

For example, suppose we have a set of ADARA-packet files, as saved by the ADARA instrument server, from the SNAP instrument run number 68851:

(mantid-developer) [ADARA-data]$ ls -al ${ADARA-data}/SNAP/${68851_DATA} | cut -d' ' -f1-3,6-
total 799824
-rw-rw-r--  1 209715276 Nov 20 20:22 ds00000001-s00000001-run-68851.adara
-rw-rw-r--  1 209715244 Nov 20 20:51 ds00000001-s00000002-run-68851.adara
-rw-rw-r--  1  69131540 Nov 20 21:01 ds00000001-s00000003-run-68851.adara
-rw-rw-r--  1  10367128 Nov 20 21:01 ds00000003-s00000001-run-68851.adara
-rw-rw-r--  1 209715684 Nov 20 20:37 m00000001-f00000001-run-68851.adara
-rw-rw-r--  1 110032168 Nov 20 21:01 m00000001-f00000002-run-68851.adara
-rw-rw-r--  1       100 Nov 20 21:01 prologue-ds00000001-run-68851.adara
-rw-rw-r--  1    143920 Nov 20 21:01 prologue-ds00000003-run-68851.adara
-rw-rw-r--  1    158276 Nov 20 21:01 prologue-m00000001-run-68851.adara
-rwxrwxr-x  1         0 Nov 20 19:53 proposal-IPTS-35450
-rwxrwxr-x  1         0 Nov 20 21:01 translation_completed

Using the names and modification times of these files, we see that the files likely to contain event data (e.g. the larger files) were saved with their modification times before those of the files containing the run-status and device-descriptor data (such as ds00000001-s00000001-run-68851.adara). Although the server saves the complete data corresponding to any packet stream, we need to do some additional work to recover what the order of that packet stream was likely to be. In this case, the fact that the server starts a new data file every 200 MB, and can resend the device-descriptor packets at that file transition allows us to infer that here we probably have 3 complete 200 MB data sections, a partial ~ 100 MB section, and possibly several other sections containing run-status and device-descriptor information. Unfortunately, that’s still not enough information to reconstruct the stream’s playback order.

Using summarize mode, pointed at this directory, the console log output shows us the location of the session log, which then contains the summary content:

(mantid-developer) [ADARA-data]adara_player --config ${adara_player_conf} --summarize "${SOURCE}/0001/*.adara"
2026-01-26 05:24:06,189: INFO: Summarizing content of ADARA-packet files ...
2026-01-26 05:24:06,189: INFO: Session 0001:
2026-01-26 05:25:19,704: INFO: Summary available at: '${ADARA_PLAYER_LOGS}/session.574768.log'.

(mantid-developer) [ADARA-data]$cat ${ADARA_PLAYER_LOGS}/session.574768.log
2026-01-26 05:24:06,189: INFO: Summarizing content of ADARA-packet files ...
2026-01-26 05:24:06,189: INFO: Session 0001:
2026-01-26 05:24:06,190: INFO: Found 9 files ...
2026-01-26 05:25:19,700: INFO: ---- prologue-m00000001-run-68851.adara (0.15 MB) ----
2026-01-26 05:25:19,700: INFO:   packets: 434
2026-01-26 05:25:19,700: INFO:     timestamps: 2025-10-13T13:14:16.606303719 .. 2025-11-21T02:01:14.440167100
2026-01-26 05:25:19,700: INFO:   0x4004 RUN_INFO_TYPE: 1
2026-01-26 05:25:19,700: INFO:   0x400a GEOMETRY_TYPE: 1
2026-01-26 05:25:19,700: INFO:   0x400b BEAMLINE_INFO_TYPE: 1
2026-01-26 05:25:19,700: INFO:   0x400d BEAM_MONITOR_CONFIG_TYPE: 1
2026-01-26 05:25:19,700: INFO:   0x4102 PIXEL_MAPPING_ALT_TYPE: 1
2026-01-26 05:25:19,700: INFO:   0x8000 DEVICE_DESC_TYPE: 39
2026-01-26 05:25:19,700: INFO:   0x8001 VAR_VALUE_U32_TYPE: 43
2026-01-26 05:25:19,700: INFO:   0x8002 VAR_VALUE_DOUBLE_TYPE: 291
2026-01-26 05:25:19,700: INFO:   0x8003 VAR_VALUE_STRING_TYPE: 56
2026-01-26 05:25:19,700: INFO: ------------------------------------------------------
2026-01-26 05:25:19,700: INFO: ---- prologue-ds00000003-run-68851.adara (0.14 MB) ----
2026-01-26 05:25:19,700: INFO:   packets: 427
2026-01-26 05:25:19,700: INFO:     timestamps: 2025-10-13T13:14:16.606303719 .. 2025-11-21T02:01:14.440291536
2026-01-26 05:25:19,700: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,701: INFO:   0x8000 DEVICE_DESC_TYPE: 36
2026-01-26 05:25:19,701: INFO:   0x8001 VAR_VALUE_U32_TYPE: 43
2026-01-26 05:25:19,701: INFO:   0x8002 VAR_VALUE_DOUBLE_TYPE: 291
2026-01-26 05:25:19,701: INFO:   0x8003 VAR_VALUE_STRING_TYPE: 56
2026-01-26 05:25:19,701: INFO: -------------------------------------------------------
2026-01-26 05:25:19,701: INFO: ---- ds00000003-s00000001-run-68851.adara (9.89 MB) ----
2026-01-26 05:25:19,701: INFO:   packets: 284405
2026-01-26 05:25:19,701: INFO:     timestamps: 2025-10-13T13:14:16.606303719 .. 2025-11-21T02:01:14.435576783
2026-01-26 05:25:19,701: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,701: INFO:   0x8000 DEVICE_DESC_TYPE: 36
2026-01-26 05:25:19,701: INFO:   0x8001 VAR_VALUE_U32_TYPE: 43
2026-01-26 05:25:19,701: INFO:   0x8002 VAR_VALUE_DOUBLE_TYPE: 284269
2026-01-26 05:25:19,701: INFO:   0x8003 VAR_VALUE_STRING_TYPE: 56
2026-01-26 05:25:19,701: INFO: --------------------------------------------------------
2026-01-26 05:25:19,701: INFO: ---- prologue-ds00000001-run-68851.adara (0.00 MB) ----
2026-01-26 05:25:19,701: INFO:   packets: 1
2026-01-26 05:25:19,701: INFO:     timestamps: 2025-11-21T02:01:14.440245002 .. 2025-11-21T02:01:14.440245002
2026-01-26 05:25:19,701: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,701: INFO: -------------------------------------------------------
2026-01-26 05:25:19,701: INFO: ---- ds00000001-s00000001-run-68851.adara (200.00 MB) ----
2026-01-26 05:25:19,701: INFO:   packets: 2388572
2026-01-26 05:25:19,701: INFO:     timestamps: 2025-11-21T00:53:03.112999667 .. 2025-11-21T01:22:18.141583667
2026-01-26 05:25:19,701: INFO:     timestamps(events): 2025-11-21T00:53:03.112999667 .. 2025-11-21T01:22:18.108250667
2026-01-26 05:25:19,701: INFO:   0x0000 RAW_EVENT_TYPE: 811457
2026-01-26 05:25:19,701: INFO:   0x0001 RTDL_TYPE: 105300
2026-01-26 05:25:19,701: INFO:   0x0003 MAPPED_EVENT_TYPE: 1471814
2026-01-26 05:25:19,701: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,701: INFO: ----------------------------------------------------------
2026-01-26 05:25:19,701: INFO: ---- m00000001-f00000001-run-68851.adara (200.00 MB) ----
2026-01-26 05:25:19,701: INFO:   packets: 1152529
2026-01-26 05:25:19,701: INFO:     timestamps: 2025-10-13T13:14:16.606303719 .. 2025-11-21T01:37:46.863157722
2026-01-26 05:25:19,701: INFO:     timestamps(events): 2025-11-21T00:53:03.112999667 .. 2025-11-21T01:37:45.806693667
2026-01-26 05:25:19,701: INFO:   0x0001 RTDL_TYPE: 160960
2026-01-26 05:25:19,701: INFO:   0x4000 BANKED_EVENT_TYPE: 160960
2026-01-26 05:25:19,701: INFO:   0x4001 BEAM_MONITOR_EVENT_TYPE: 160960
2026-01-26 05:25:19,701: INFO:   0x4003 RUN_STATUS_TYPE: 2
2026-01-26 05:25:19,701: INFO:   0x4004 RUN_INFO_TYPE: 1
2026-01-26 05:25:19,701: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 2
2026-01-26 05:25:19,701: INFO:   0x4008 SYNC_TYPE: 17
2026-01-26 05:25:19,701: INFO:   0x400a GEOMETRY_TYPE: 1
2026-01-26 05:25:19,701: INFO:   0x400b BEAMLINE_INFO_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x400d BEAM_MONITOR_CONFIG_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x4102 PIXEL_MAPPING_ALT_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x8000 DEVICE_DESC_TYPE: 39
2026-01-26 05:25:19,702: INFO:   0x8001 VAR_VALUE_U32_TYPE: 482918
2026-01-26 05:25:19,702: INFO:   0x8002 VAR_VALUE_DOUBLE_TYPE: 186610
2026-01-26 05:25:19,702: INFO:   0x8003 VAR_VALUE_STRING_TYPE: 56
2026-01-26 05:25:19,702: INFO: ---------------------------------------------------------
2026-01-26 05:25:19,702: INFO: ---- ds00000001-s00000003-run-68851.adara (65.93 MB) ----
2026-01-26 05:25:19,702: INFO:   packets: 787850
2026-01-26 05:25:19,702: INFO:     timestamps: 2025-11-21T01:51:35.153534667 .. 2025-11-21T02:01:14.446302667
2026-01-26 05:25:19,702: INFO:     timestamps(events): 2025-11-21T01:51:35.153534667 .. 2025-11-21T02:01:14.429635667
2026-01-26 05:25:19,702: INFO:   0x0000 RAW_EVENT_TYPE: 267784
2026-01-26 05:25:19,702: INFO:   0x0001 RTDL_TYPE: 34754
2026-01-26 05:25:19,702: INFO:   0x0003 MAPPED_EVENT_TYPE: 485311
2026-01-26 05:25:19,702: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,702: INFO: ---------------------------------------------------------
2026-01-26 05:25:19,702: INFO: ---- ds00000001-s00000002-run-68851.adara (200.00 MB) ----
2026-01-26 05:25:19,702: INFO:   packets: 2390236
2026-01-26 05:25:19,702: INFO:     timestamps: 2025-11-21T01:22:18.091583667 .. 2025-11-21T01:51:35.203535667
2026-01-26 05:25:19,702: INFO:     timestamps(events): 2025-11-21T01:22:18.091583667 .. 2025-11-21T01:51:35.170201667
2026-01-26 05:25:19,702: INFO:   0x0000 RAW_EVENT_TYPE: 812452
2026-01-26 05:25:19,702: INFO:   0x0001 RTDL_TYPE: 105422
2026-01-26 05:25:19,702: INFO:   0x0003 MAPPED_EVENT_TYPE: 1472361
2026-01-26 05:25:19,702: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,702: INFO: ----------------------------------------------------------
2026-01-26 05:25:19,702: INFO: ---- m00000001-f00000002-run-68851.adara (104.93 MB) ----
2026-01-26 05:25:19,702: INFO:   packets: 605203
2026-01-26 05:25:19,702: INFO:     timestamps: 2025-10-13T13:14:16.606303719 .. 2025-11-21T02:01:17.452662957
2026-01-26 05:25:19,702: INFO:     timestamps(events): 2025-11-21T01:37:45.823360667 .. 2025-11-21T02:01:14.429635667
2026-01-26 05:25:19,702: INFO:   0x0001 RTDL_TYPE: 84516
2026-01-26 05:25:19,702: INFO:   0x4000 BANKED_EVENT_TYPE: 84516
2026-01-26 05:25:19,702: INFO:   0x4001 BEAM_MONITOR_EVENT_TYPE: 84516
2026-01-26 05:25:19,702: INFO:   0x4003 RUN_STATUS_TYPE: 2
2026-01-26 05:25:19,702: INFO:   0x4004 RUN_INFO_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x4008 SYNC_TYPE: 9
2026-01-26 05:25:19,702: INFO:   0x400a GEOMETRY_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x400b BEAMLINE_INFO_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x400d BEAM_MONITOR_CONFIG_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x4102 PIXEL_MAPPING_ALT_TYPE: 1
2026-01-26 05:25:19,702: INFO:   0x8000 DEVICE_DESC_TYPE: 39
2026-01-26 05:25:19,702: INFO:   0x8001 VAR_VALUE_U32_TYPE: 253593
2026-01-26 05:25:19,702: INFO:   0x8002 VAR_VALUE_DOUBLE_TYPE: 97950
2026-01-26 05:25:19,703: INFO:   0x8003 VAR_VALUE_STRING_TYPE: 56
2026-01-26 05:25:19,703: INFO: ---------------------------------------------------------
2026-01-26 05:25:19,703: INFO: Suggested playback ordering:
2026-01-26 05:25:19,703: INFO: ----------------------------
2026-01-26 05:25:19,703: INFO:  ds00000003-s00000001-run-68851.adara (metadata: 2025-11-21T00:53:03.110000000)
2026-01-26 05:25:19,703: INFO:  ds00000001-s00000001-run-68851.adara (events: 2025-11-21T00:53:03.110000000)
2026-01-26 05:25:19,703: INFO:  m00000001-f00000001-run-68851.adara  (events: 2025-11-21T00:53:03.110000000)
2026-01-26 05:25:19,703: INFO:  ds00000001-s00000002-run-68851.adara (events: 2025-11-21T01:22:18.088000000)
2026-01-26 05:25:19,703: INFO:  m00000001-f00000002-run-68851.adara  (events: 2025-11-21T01:37:45.812000000)
2026-01-26 05:25:19,703: INFO:  ds00000001-s00000003-run-68851.adara (events: 2025-11-21T01:51:35.140000000)
2026-01-26 05:25:19,703: INFO:  prologue-ds00000001-run-68851.adara  (metadata: 2025-11-21T02:01:14.432000000)
2026-01-26 05:25:19,703: INFO:  prologue-ds00000003-run-68851.adara  (metadata: 2025-11-21T02:01:14.432000000)
2026-01-26 05:25:19,703: INFO:  prologue-m00000001-run-68851.adara   (metadata: 2025-11-21T02:01:14.432000000)
2026-01-26 05:25:19,704: INFO: Summary available at: '${ADARA_PLAYER_LOGS}/session.574768.log'.

The section Suggested playback ordering at the end of the summary is an analysis of the probable file ordering based on the packet timestamps. The difficulty for this analysis stems primarily from the fact that several packet types, such as geometry packets, have timestamps that correspond to the start of a proposal, which may be months in the past. For this reason, we use a combination of the event-timestamp ranges, followed by the control-packet timestamps (an ad hoc hierarchy of packet types) to sort these files. Whenever possible, files containing only metadata packets precede files containing event packets.

The Suggested playback ordering can be used to create a sessions.yml file. Each sublist under the sessions key corresponds to the playback order to use for a single session (i.e. a single client connection). This YAML file can then be used with the --files sessions.yml commandline argument of the adara_player application. WARNING: because of the way the ADARA-server saves its file data, often there will be duplicate DEVICE_DESC_TYPE packets in the group of files corresponding to a single run. Originally the SNSLiveEventDataListener treated this case as an error, but in the current version, instead this will produce a warning in the logs, and the re-definition will be skipped.

# example `sessions.yml`
base_path: tests/scripts/data/test_input
sessions:
  - # session 1:
    - ds00000003-s00000001-run-68851.adara  # initial metadata & run status
    - ds00000001-s00000001-run-68851.adara  # events
    - m00000001-f00000001-run-68851.adara   # events
    - ds00000001-s00000002-run-68851.adara  # events
    - m00000001-f00000002-run-68851.adara   # events
    - ds00000001-s00000003-run-68851.adara  # events
    - prologue-ds00000001-run-68851.adara   # trailing metadata: WARNING -- may be duplicate
    - prologue-ds00000003-run-68851.adara   # metadata: " "
    - prologue-m00000001-run-68851.adara    # metadata: " "

Caveat RE ``Suggested playback ordering``:

  • At the moment, I recommend simply ignoring any metadata-only files. Including these files in the playback generates “duplicate device-descriptor for XX” and “XX is not a time-series property” errors (i.e. the latter because “XX” has not seen its device-descriptor yet);

  • This should be OK because the event-bearing files do contain the RUN_STATUS, RUN_INFO, GEOMETRY_TYPE, and DEVICE_DESC_TYPE sections.

I’m not at all sure what is going on with this issue. Possibly the ADARA-server is being somewhat redundant with respect to the packet-data that it saves?

Setup for examples

In the following we assume that:

  • your mantid build directory: ${BUILD};

  • the location of the scripts: ${LIVEDATA_TEST_SCRIPTS}: LIVEDATA_TEST_SCRIPTS=${BUILD}/../Framework/PythonInterface/test/python/mantid/LiveData/ADARA/utils/packet_playback/scripts;

  • the location of the adara_player.py: ${ADARA_PLAYER}: ADARA_PLAYER=Framework/PythonInterface/mantid/LiveData/ADARA/utils/packet_playback/adara_player.py;

  • the location of the input data for these examples: ${ADARA_PLAYER_INPUT_DATA};

  • your logs output directory is: ${ADARA_PLAYER_LOGS};

  • from ${BUILD}/bin/launch_mantidworkbench.sh: ${LOCAL_PRELOAD}

  • from ${BUILD}/bin/launch_mantidworkbench.sh: ${LOCAL_PYTHONPATH}

Make sure that you redefine all of these for *every* console session.

1. Build mantid, or make sure you’re using a version that has an updated SNSLiveEventDataListener. The main issues here are:

  • the listener needs to be able to work successfully with Unix Domain Socket (UDS) addresses;

  • duplicate DEVICE_DESC_TYPE packets now generate a warning, rather than raising an exception.

# from the repository root
mkdir build; cd build
cmake .. -GNinja
cmake --build . --target AllTests workbench StandardTestData SystemTestData

2. Create the test directory structure:

mkdir ${BUILD}/adara_player_tmp
cd ${BUILD}/adara_player_tmp

# a directory for the logs output
mkdir ${BUILD}/adara_player_tmp/logs

# extract the input data for these examples
tar -xf ${BUILD}/ExternalData/Testing/Data/SystemTest/adara_player_input_data.tar

For use in the following, here’s a separate environment variables definition section. Note that these variable definitions could be stored in a file, and then the file could either be sourced or stored as an .envrc file to be used along with utility direnv. Usually, this environment variable definition step would be completed before creating the subdirectories and extracting the data, so that variables are readily available when running these actions, and the directory locations will then automatically be consistent with the variable definitions.

REPO_BASE=*** FILL THIS IN! ***
BUILD=*** FILL THIS IN! ***

# probable definitions, but check in your own ``${BUILD}/bin/launch_mantidworkbench.sh``
LOCAL_PRELOAD=${HOME}/mambaforge/envs/mantid-developer/lib/libjemalloc.so.2
LOCAL_PYTHONPATH=${BUILD}/bin

LIVEDATA_TEST_SCRIPTS=${REPO_BASE}/Framework/PythonInterface/test/python/mantid/LiveData/ADARA/utils/packet_playback/scripts
ADARA_PLAYER_UTILS=${REPO_BASE}/Framework/PythonInterface/mantid/LiveData/ADARA/utils/packet_playback
ADARA_PLAYER=${ADARA_PLAYER_UTILS}/adara_player.py
ADARA_PLAYER_LOGS=${BUILD}/adara_player_tmp/logs
ADARA_PLAYER_INPUT_DATA=${BUILD}/adara_player_tmp/adara_player_input_data

# define a directory for the output data
ADARA_PLAYER_OUTPUT_DATA=${BUILD}/adara_player_tmp/output_data
3. IMPORTANT reminder: Set the base_path in ${LIVEDATA_TEST_SCRIPTS}/adara_player_sessions.yml to the value of ${ADARA_PLAYER_INPUT_DATA}.
4. IMPORTANT reminder: Set the logging.filename in ${ADARA_PLAYER_UTILS}/adara_player_conf.yml using the value from ${ADARA_PLAYER_LOGS}. Note that the PID key will be substituted automatically, if present in the name.

Example playback mode session

1. In its own console: start adara_player in playback mode:

# activate your `mantid-developer` environment
mamba activate mantid-developer

##
## DEFINE all of your environment variables as in ``Setup for examples``!
##

# this isn't strictly necessary, but this environment key allows you to control the YAML config location:
adara_player_conf=${ADARA_PLAYER_UTILS}/adara_player_conf.yml

echo "default SERVER_ADDRESS: ${XDG_RUNTIME_DIR}/sock-adara_player" # change this in `adara_player_conf.yml`, if required

# default mode is `playback`:
LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python ${ADARA_PLAYER} --config ${adara_player_conf} --files=${LIVEDATA_TEST_SCRIPTS}/adara_player_sessions.yml

(mantid-developer) [packet_playback]> LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}  python ${ADARA_PLAYER} --config ${adara_player_conf} --files=${LIVEDATA_TEST_SCRIPTS}/adara_player_sessions.yml
2026-01-27 05:06:19,835: INFO: Waiting for client connection at /run/user/46619/sock-adara_player...
2026-01-27 05:06:19,836: INFO: Type CNTL-C to exit.

3. In another console, run the script that calls StartLiveData. Note that in this script, we change the Address argument to be our default SERVER_ADDRESS:

# activate your `mantid-developer` environment
mamba activate mantid-developer

##
## DEFINE all of your environment variables as in ``Setup for examples``!
##

cd ${LIVEDATA_TEST_SCRIPTS}
LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python adara_player_StartLiveData.py

(mantid-developer) [scripts]> LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python adara_player_StartLiveData.py
FrameworkManager-[Notice] Welcome to Mantid 6.14.0.1.dev87
FrameworkManager-[Notice] Please cite: http://dx.doi.org/10.1016/j.nima.2014.07.029 and this release: http://dx.doi.org/10.5286/Software/Mantid
StartLiveData-[Notice] StartLiveData started
SNSLiveEventDataListener-[Notice] Run number is 68851
LoadLiveData-[Warning] The SNSLiveEventDataListener is not ready to return data: The workspace has not yet been initialized.
LoadLiveData-[Warning] Trying again in 10 seconds - cancel the algorithm to stop.
LoadLiveData-[Notice] Performing chunk processing using RunPythonScript
Loaded chunk: 248988 events
  pulse-times: 2025-11-21T00:53:03.162999667 -- 2025-11-21T01:29:39.948780667
  event-times: 2025-11-21T00:53:03.162999667 -- 2025-11-21T01:29:39.948780667
LoadLiveData-[Notice] Performing the Replace operation.
StartLiveData-[Notice] StartLiveData successful, Duration 21.84 seconds
MonitorLiveData-[Notice] MonitorLiveData started
MonitorLiveData-[Notice] Loading live data chunk 0 at 10:44:13
Loaded chunk: 210904 events
  pulse-times: 2025-11-21T01:29:39.948780667 -- 2025-11-21T02:01:14.346301667
  event-times: 2025-11-21T01:29:39.982113667 -- 2025-11-21T02:01:14.346301667
MonitorLiveData-[Notice] Run #68851 ended. Clearing existing workspace.
MonitorLiveData-[Notice] Loading live data chunk 1 at 10:44:23
MonitorLiveData-[Warning] MonitorLiveData: Execution cancelled by user.
(mantid-developer) [scripts]$

Example record mode session

The beam is currently down, so what can we do? It turns out quite a lot! In this example we’ll use adara_player in playback mode to mock the ADARA instrument server. Then in a separate process, we’ll use adara_player in record mode to record our client application’s session. To keep things simple, we’ll duplicate some of the sections above, but with a few small changes.

1. Complete the setup as in Setup for examples.

2. a) In its own console: start adara_player in playback mode: (here we add a “-source” *suffix* to the server address):

# activate your `mantid-developer` environment
mamba activate mantid-developer

##
## DEFINE all of your environment variables as in ``Setup for examples``!
##

# this isn't strictly necessary, but it allows you to control the YAML config location:
adara_player_conf=${ADARA_PLAYER_UTILS}/adara_player_conf.yml

# add the "-source" suffix for this server process,
#   this lets the ``record`` proxy process use the *default* address
SERVER_ADDRESS=${XDG_RUNTIME_DIR}/sock-adara_player-source

# default mode is `playback`:
LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python ${ADARA_PLAYER} --config ${adara_player_conf} --server_address=${SERVER_ADDRESS} --files=${LIVEDATA_TEST_SCRIPTS}/adara_player_sessions.yml

2. b) In another console: start adara_player in record mode: (here we use the *default* server address):

# activate your `mantid-developer` environment
mamba activate mantid-developer

##
## DEFINE all of your environment variables as in ``Setup for examples``!
##

# this isn't strictly necessary, but it allows you to control the YAML config location:
adara_player_conf=${ADARA_PLAYER_UTILS}/adara_player_conf.yml

# set the source address to the server address used in ``2) a)``
SOURCE_ADDRESS=${XDG_RUNTIME_DIR}/sock-adara_player-source

# use ``record`` mode, but with the default server address:
LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python ${ADARA_PLAYER} --config ${adara_player_conf} --record --source_address=${SOURCE_ADDRESS} ${ADARA_PLAYER_OUTPUT_DATA}

3. Finally, in yet another console, run the script that calls StartLiveData: (this is exactly the same as for the ``playback`` mode example).

# activate your `mantid-developer` environment
mamba activate mantid-developer

##
## DEFINE all of your environment variables as in ``Setup for examples``!
##

cd ${LIVEDATA_TEST_SCRIPTS}
LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python adara_player_StartLiveData.py

After the client session completes, the contents of the ${ADARA_PLAYER_OUTPUT_DATA} directory should be:

(mantid-developer) [packet_playback]$ tree ${ADARA_PLAYER_OUTPUT_DATA}
${ADARA_PLAYER_OUTPUT_DATA}
└── 0001
    ├── session.adara
    └── session.log -> ${ADARA_PLAYER_LOGS}/session.614216.log

1 directory, 2 files

Note that in record mode, the default is to output all of the packets to a single session.adara file, and even in the case of only one client connection (i.e. “session”) a complete session-directory tree will be created. The corresponding command to play this back is just adara_player ${ADARA_PLAYER_OUTPUT_DATA} – only specifying the root of the tree.

4. Just as a reality check, we’ll verify the contents of the packet file from the recorded session:

# activate your `mantid-developer` environment
mamba activate mantid-developer

##
## DEFINE all of your environment variables as in ``Setup for examples``!
##

# this isn't strictly necessary, but it allows you to control the YAML config location:
adara_player_conf=${ADARA_PLAYER_UTILS}/adara_player_conf.yml

LD_PRELOAD=${LOCAL_PRELOAD} PYTHONPATH=${LOCAL_PYTHONPATH}\
  python ${ADARA_PLAYER} --config ${adara_player_conf} --summarize ${ADARA_PLAYER_OUTPUT_DATA}

2026-01-27 11:33:27,528: INFO: Summarizing content of ADARA-packet files ...
2026-01-27 11:33:27,528: INFO: Session 0001:
2026-01-27 11:33:32,323: INFO: Summary available at:
    '${ADARA_PLAYER_LOGS}/session.615527.log'.

(mantid-developer) [packet_playback]$ cat ${ADARA_PLAYER_LOGS}/session.615527.log
2026-01-27 11:33:27,528: INFO: Summarizing content of ADARA-packet files ...
2026-01-27 11:33:27,528: INFO: Session 0001:
2026-01-27 11:33:27,529: INFO: Found 1 files ...
2026-01-27 11:33:32,322: INFO: ---- session.adara (40.17 MB) ----
2026-01-27 11:33:32,322: INFO:   packets: 509390
2026-01-27 11:33:32,322: INFO:     timestamps: 2025-10-13T13:14:16.606303719 .. 2025-11-21T01:22:18.141583667
2026-01-27 11:33:32,322: INFO:     timestamps(events): 2025-11-21T00:53:03.112999667 .. 2025-11-21T01:22:18.091583667
2026-01-27 11:33:32,322: INFO:   0x0000 RAW_EVENT_TYPE: 40579
2026-01-27 11:33:32,322: INFO:   0x0001 RTDL_TYPE: 160402
2026-01-27 11:33:32,322: INFO:   0x0003 MAPPED_EVENT_TYPE: 73230
2026-01-27 11:33:32,322: INFO:   0x4000 BANKED_EVENT_TYPE: 2728
2026-01-27 11:33:32,322: INFO:   0x4001 BEAM_MONITOR_EVENT_TYPE: 2764
2026-01-27 11:33:32,322: INFO:   0x4003 RUN_STATUS_TYPE: 1
2026-01-27 11:33:32,322: INFO:   0x4004 RUN_INFO_TYPE: 1
2026-01-27 11:33:32,322: INFO:   0x4007 STREAM_ANNOTATION_TYPE: 3
2026-01-27 11:33:32,322: INFO:   0x4008 SYNC_TYPE: 6
2026-01-27 11:33:32,322: INFO:   0x400a GEOMETRY_TYPE: 1
2026-01-27 11:33:32,322: INFO:   0x400b BEAMLINE_INFO_TYPE: 1
2026-01-27 11:33:32,322: INFO:   0x400d BEAM_MONITOR_CONFIG_TYPE: 1
2026-01-27 11:33:32,322: INFO:   0x4102 PIXEL_MAPPING_ALT_TYPE: 1
2026-01-27 11:33:32,322: INFO:   0x8000 DEVICE_DESC_TYPE: 39
2026-01-27 11:33:32,322: INFO:   0x8001 VAR_VALUE_U32_TYPE: 165346
2026-01-27 11:33:32,322: INFO:   0x8002 VAR_VALUE_DOUBLE_TYPE: 64231
2026-01-27 11:33:32,322: INFO:   0x8003 VAR_VALUE_STRING_TYPE: 56
2026-01-27 11:33:32,322: INFO: ----------------------------------
2026-01-27 11:33:32,322: INFO: Suggested playback ordering:
2026-01-27 11:33:32,322: INFO: ----------------------------
2026-01-27 11:33:32,323: INFO:  session.adara (events: 2025-11-21T00:53:03.110000000)
2026-01-27 11:33:32,323: INFO: Summary available at:
    '${ADARA_PLAYER_LOGS}/session.615527.log'.

As can be seen, all of the packets have been combined into a single file. Note that if it’s ever required, in adara_player_conf.yml, record.file_output can also be set to single_packet mode – this might be useful for special situations.
