SNSLiveEventDataListener refactoring

This document covers the listener-specific aspects of the June 2026 live-listener refactor (the ADARA packet flow, the deferred RunStatusPkt handling, the m_pauseNetRead back-pressure mechanism, and the state-machine diagrams) for SNSLiveEventDataListener.

For the generic interface — the four pure-getter queries, the extractData() template method, the migration recipe, and worked examples for non-SNS listeners — see Live-Listener API Migration Guide (v3 refactoring).

Scope

SNSLiveEventDataListener is the most complex concrete ILiveListener subclass in the tree. It is the only listener that:

• maintains a real BeginRun / EndRun edge-detection contract with its consumers;

• defers run-status side effects (cache clears, workspace re-init, deferred-packet consumption) across thread boundaries;

• uses an explicit back-pressure flag (m_pauseNetRead) between the background reader and the foreground extractor;

• has a documented pause/resume orthogonal axis driven by ADARA annotation packets.

Everything in this document applies to SNSLiveEventDataListener specifically. Other listeners are simpler and are covered in Live-Listener API Migration Guide (v3 refactoring).

ADARA protocol context

The SNS live-event stream is the ADARA protocol. Five packet types are relevant to the state machine:

• ADARA::RunStatusPkt — carries NEW_RUN (run is starting) and END_RUN (run is ending) markers. Drives the runState() axis.

• ADARA::AnnotationPkt — carries PAUSE and RESUME markers. Drives the isPaused() axis.

• ADARA::BeamlineInfoPkt and ADARA::GeometryPkt— carry instrument-geometry information. Allow completion of workspace initialization.

• ADARA::BankedEventPkt — carries the actual neutron-event records. Gated on m_isDasPaused so paused events are discarded.

Two orthogonal state axes

The ADARA protocol exposes two independent state axes that the legacy runStatus() conflated:

• Run state — whether the DAS is in a run (NoRun / BeginRun / Running / EndRun). Driven by RunStatusPkt. Transitions require workspace-level coordination (cache clears, re-init), so they are queued and committed in extractData().

• Pause state — whether the current run is paused. Driven by AnnotationPkt PAUSE / RESUME markers. Orthogonal to run state: a run can be in Running status while paused, and the ADARA protocol does not change the RunStatus field on a pause. Pause state has no workspace-level side effects beyond gating event appending, so it is applied immediately in the background thread, not queued.

A summary of where each axis is read and written:

Question	Answer	Type
What is the DAS run state right now?	RunStatus	pure read (runState())
Is the current run paused?	bool	pure read (isPaused())
Is the listener connected / back-pressure / errored?	ListenerState	pure read (listenerState())
What run-state transition (if any) did the most recent extractData() consume?	optional<RunStatus>	pure read (lastTransition())

Pre-refactor problem

The legacy SNSLiveEventDataListener::runStatus() (roughly lines 1495–1534 in the pre-refactor SNSLiveEventDataListener.cpp) performed all of the following inside what callers treated as a getter:

• Returned the cached m_status value.

• On BeginRun: consumed m_deferredRunDetailsPkt via setRunDetails(*m_deferredRunDetailsPkt), reset the deferred packet, advanced m_status to Running.

• On EndRun: cleared m_instrumentXML, m_instrumentName, m_dataStartTime, advanced m_status to NoRun.

• Unconditionally: cleared the m_pauseNetRead back-pressure flag, releasing the background reader.

• Implicitly: marked the workspace as needing re-initialisation and ran initWorkspacePart1() to populate it.

This produced four distinct problems:

1. Conflated state. A single RunStatus return value reported both the DAS run state and the listener’s internal FSM position.

2. Hidden side effects. Every call to runStatus() mutated caches and consumed packets. Reading the state without changing it was impossible.

3. The “little white lie” path (resolved by JoiningRun ). When NEW_RUN arrived before the workspace was initialised, rxPacket(RunStatusPkt) skipped the BeginRun transition and pretended the state was already Running, preserving the workspace-init invariant but at the cost of an off-diagram code path that was the only NoRun → Running transition committed outside onBeginRun(). This is now eliminated: the listener instead advances to the new JoiningRun state and queues a normal BeginRun edge once initWorkspacePart2() completes (see Single-slot invariant below).

4. Stand-alone ``LoadLiveData`` deadlock. LoadLiveData does not call runStatus(). After rxPacket(RunStatusPkt) set m_pauseNetRead = true, nothing ever cleared it. The background reader stopped, the workspace could not be re-initialised, and extractData() either timed out (NotYet) or spun on a stale workspace.

A fifth, more subtle issue: MonitorLiveData worked correctly only because it happened to call extractData() first and runStatus() second within each polling iteration. Nothing in the type system enforced that ordering; it was an undocumented contract.

New state model

The conflated m_status member is split into three:

• m_adaraRunStatus — what the DAS run state is right now (read by runState()). Written by rxPacket(RunStatusPkt) and by the onBeginRun() / onEndRun() hooks.

• m_pendingTransition — exactly one run-state edge waiting to be consumed by extractData() (queued by rxPacket(RunStatusPkt), dequeued by onBeforeExtract() for BeginRun and by onAfterExtract() for EndRun).

• m_lastTransition — the run-state edge committed by the most recent successful extractData() (read by lastTransition()). Both BeginRun and EndRun are observable to the caller between the extractData() that committed them and the next successful extractData().

• m_previousExtractCompleted — set true at the end of onAfterExtract(), consumed (cleared) at the start of the next onBeforeExtract() after both NotYet gates pass. Gates the deferred clear of m_lastTransition so the edge survives Exception::NotYet retries (the C1 invariant).

The pause flag is renamed for clarity: m_runPaused → m_isDasPaused, read by isPaused().

The back-pressure flag m_pauseNetRead keeps both its name and its meaning, to keep the diff focused and the explanatory comments in rxPacket(RunStatusPkt) intelligible.

Single-slot invariant

At most one un-consumed transition can exist at a time. The background thread enforces this by setting m_pauseNetRead = true whenever it queues a transition; the background reader then blocks until extractData() releases m_pauseNetRead via the hook.

The JoiningRun case (NEW_RUN with workspace not yet initialised) is the one path that queues no back-pressure: the background thread must keep reading packets to complete workspace initialisation. It queues a BeginRun edge only once initWorkspacePart2() succeeds, at which point m_pendingTransition is not yet occupied and no back-pressure is needed (there are no prior run’s events to protect).

The invariant is checked explicitly in rxPacket(RunStatusPkt); violation is treated as an implementation error and raises:

if (m_pendingTransition) {
    throw std::runtime_error(
        "SNSLiveEventDataListener: pending run-state transition was not "
        "consumed before a new transition arrived — back-pressure invariant "
        "violation.");
}
m_pendingTransition = BeginRun;   // or EndRun
m_pauseNetRead      = true;

This is a runtime_error rather than a debug-only assertion so the condition is never silently masked in release builds.

Header summary

class SNSLiveEventDataListener : public API::LiveListener,
                                 public Poco::Runnable,
                                 public ADARA::Parser {
public:
    // pure queries
    RunStatus runState() const override;
    bool isPaused() const override;
    ListenerState listenerState() const override;
    std::optional<RunStatus> lastTransition() const override;

    int runNumber() const override { return m_runNumber; }
    bool isConnected() override;

protected:
    /// Phase 1 of extraction: commit any queued ``BeginRun`` transition.
    /// Called by LiveListener::extractData() before doExtractData().
    /// Runs on the foreground thread.
    void onBeforeExtract() override;

    /// Phase 2/3 of extraction: wait for workspace initialisation,
    /// build the new EventWorkspace, swap, and return it.
    std::shared_ptr<API::Workspace> doExtractData() override;

    /// Phase 4 of extraction: commit any queued ``EndRun`` transition.
    /// Deferred to after doExtractData() so the finishing run's
    /// accumulated events are harvested before the workspace buffer
    /// is reset by onEndRun().
    void onAfterExtract() override;

    /// Explicit, named state-transition hooks.
    virtual void onBeginRun();
    virtual void onEndRun();
    virtual void onRunPause(bool paused);

private:
    // ADARA / DAS state (written by background thread)
    RunStatus m_adaraRunStatus{NoRun};
    std::shared_ptr<ADARA::RunStatusPkt> m_deferredRunDetailsPkt;

    // Pending run-state transition (background -> foreground).
    // INVARIANT: at most one un-consumed transition at a time.
    std::optional<RunStatus> m_pendingTransition;

    // Result of the most recent commit (read by lastTransition()).
    std::optional<RunStatus> m_lastTransition;

    // Listener health
    std::shared_ptr<std::runtime_error> m_backgroundException;

    // Existing members (unchanged)
    int m_runNumber{0};
    DataObjects::EventWorkspace_sptr m_eventBuffer;
    bool m_workspaceInitialized{false};
    std::string m_instrumentName;
    std::string m_instrumentXML;
    /* ... etc. ... */
    mutable std::mutex m_mutex;        ///< guards all of the above
    bool m_pauseNetRead{false};        ///< back-pressure flag
    bool m_isDasPaused{false};         ///< set by onRunPause(); read by isPaused()
    NameMapType m_nameMap;
    /* ... etc. ... */
};

State-machine diagrams

Two diagrams below show the runState evolution for the SNS listener. Apart from the addition of a new JoiningRun state, the shape of the state machine is unchanged between pre- and post-refactor; what changes is where the transitions are committed — and that change is what makes the listener safe to use from stand-alone LoadLiveData.

In both diagrams:

• Nodes are the four runState values (NoRun, BeginRun, Running, EndRun).

• Edges are labelled with the ADARA packet (or call) that triggers the transition.

• A dashed box (cluster) encloses the transitions that are committed at a particular point in the code — i.e. where the visible state mutation and the workspace-level side effects actually occur.

• The isPaused() axis is shown as a separate small subgraph; it is orthogonal to runState and applied immediately in the background thread.

• The listenerState() axis is shown as a separate small subgraph.

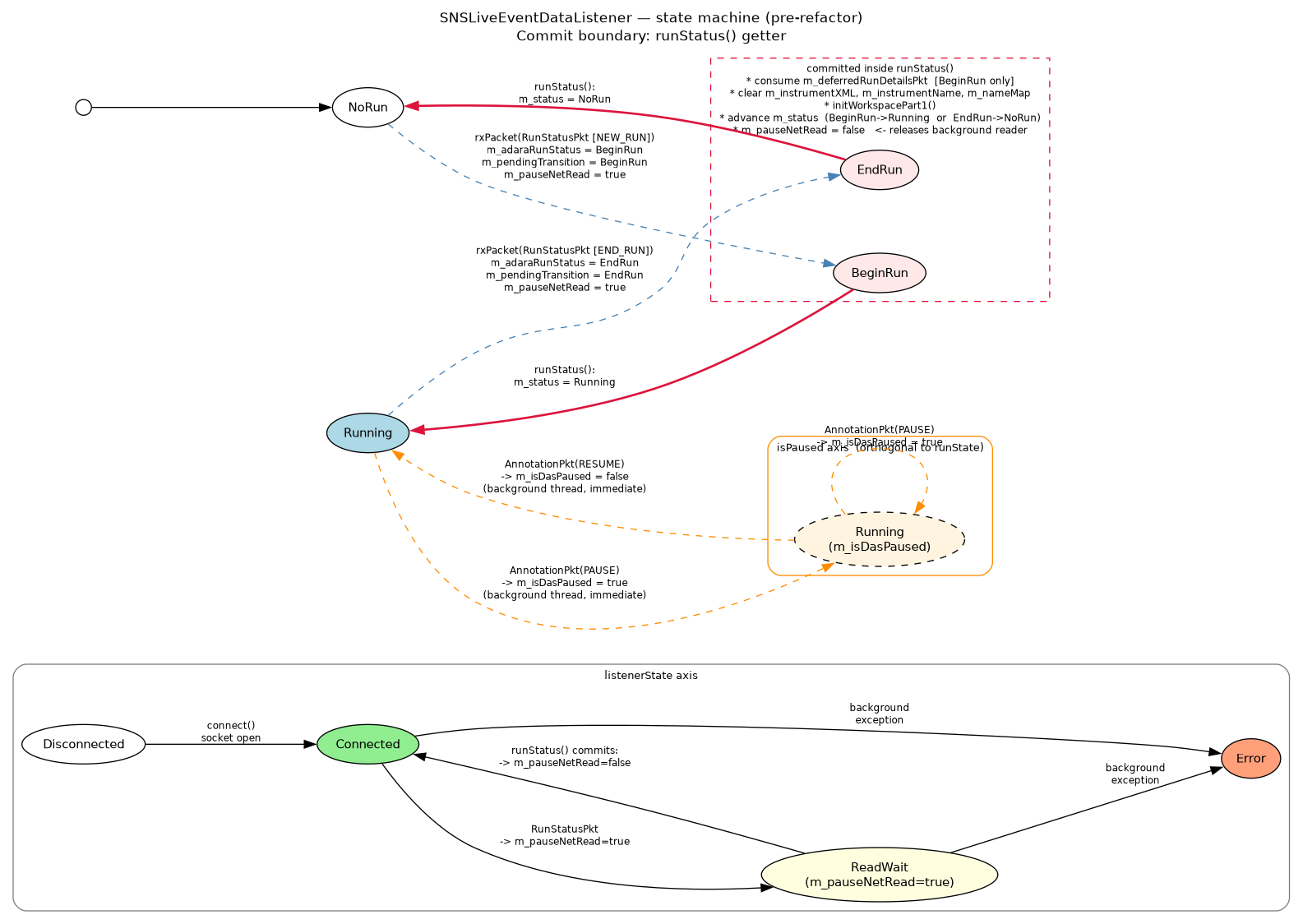

Pre-refactor: transitions committed inside runStatus()

In the pre-refactor design the commit boundary is the ``runStatus()`` getter itself. External callers that never invoke runStatus() — notably stand-alone LoadLiveData — never trigger the transition, m_pauseNetRead is never released, and the listener deadlocks.

The diagram source is committed alongside the rendered image at dev-docs/source/images/SNSLiveEventDataListener-state-machine-before.dot; regenerate the PNG with:

dot -Tpng -o SNSLiveEventDataListener-state-machine-before.png \
          SNSLiveEventDataListener-state-machine-before.dot

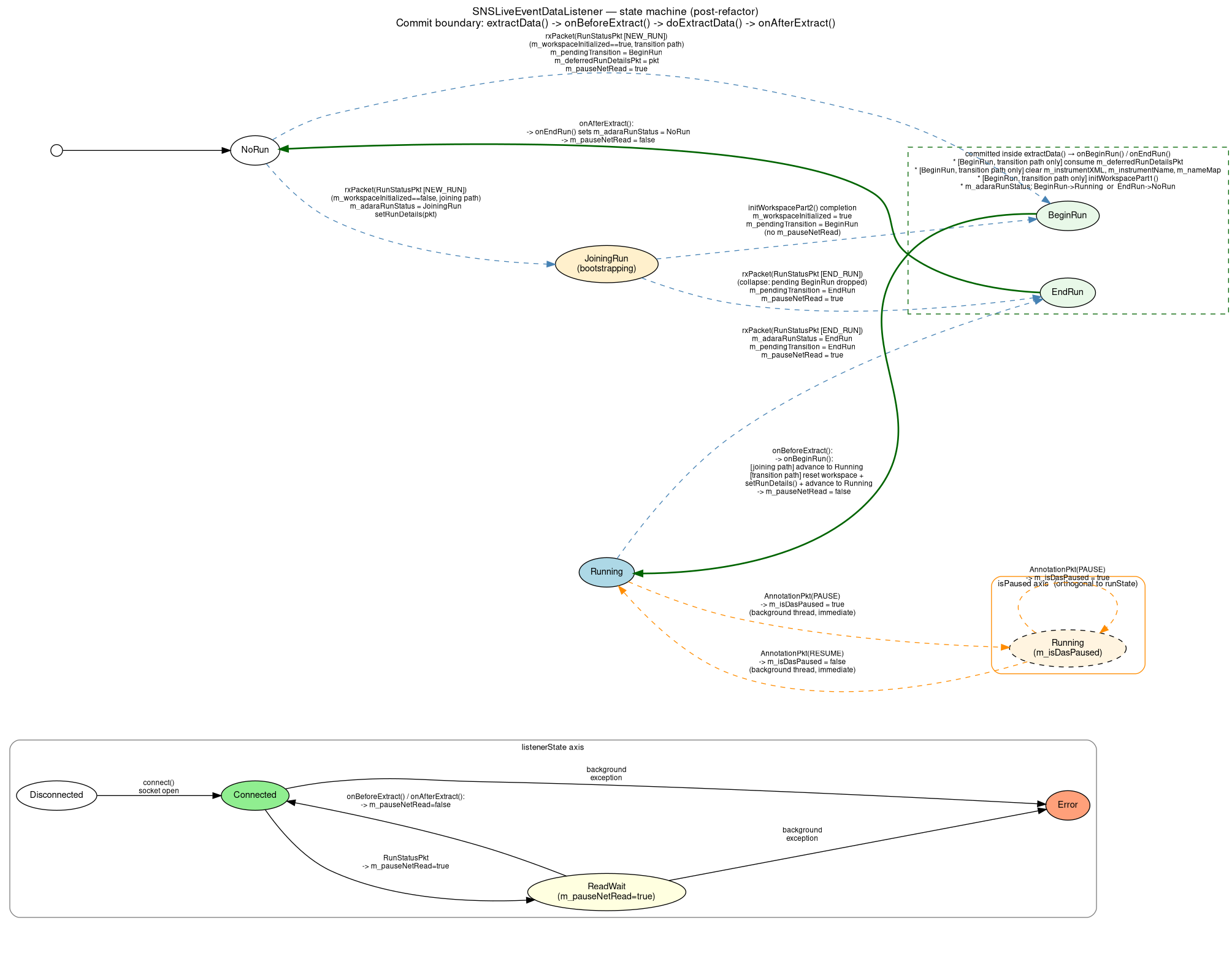

Post-refactor: transitions committed inside extractData()

In the post-refactor design the commit boundary is the ``extractData()`` template method — specifically the onBeforeExtract() and onAfterExtract() hooks that bracket doExtractData(). BeginRun is dispatched in onBeforeExtract() so the new run’s workspace is initialised before doExtractData() snapshots it; EndRun is dispatched in onAfterExtract() so the finishing run’s accumulated events are harvested before onEndRun() resets the buffer. Because every consumer of ILiveListener calls extractData(), every consumer drives the FSM forward, and stand-alone LoadLiveData works without changes.

The diagram source is committed alongside the rendered image at dev-docs/source/images/SNSLiveEventDataListener-state-machine-after.dot; regenerate the PNG with the analogous dot command.

Implementation

Pure getters

ILiveListener::RunStatus
SNSLiveEventDataListener::runState() const {
    if (m_backgroundException) throw *m_backgroundException;
    std::lock_guard lock(m_mutex);
    return m_adaraRunStatus;
}

ListenerState
SNSLiveEventDataListener::listenerState() const {
    std::lock_guard lock(m_mutex);
    if (m_backgroundException) return ListenerState::Error;
    if (!m_isConnected)        return ListenerState::Disconnected;
    if (m_pauseNetRead)        return ListenerState::ReadWait;
    return ListenerState::Connected;
}

std::optional<ILiveListener::RunStatus>
SNSLiveEventDataListener::lastTransition() const {
    if (m_backgroundException) throw *m_backgroundException;
    std::lock_guard lock(m_mutex);
    return m_lastTransition;
}

bool SNSLiveEventDataListener::isPaused() const {
    std::lock_guard lock(m_mutex);
    return m_isDasPaused;
}

All four getters are const and have no side effects. None mutate m_adaraRunStatus, m_isDasPaused, m_pendingTransition, m_pauseNetRead, or any cache.

Background reader and packet handlers

In rxPacket(const ADARA::RunStatusPkt &pkt) the changes versus the legacy implementation are:

• Replace assignments to the conflated m_status with assignments to m_adaraRunStatus.

• On NEW_RUN with m_workspaceInitialized == true: enforce the single-slot invariant, queue m_pendingTransition = BeginRun, set m_pauseNetRead = true.

• On NEW_RUN with m_workspaceInitialized == false (joining path): set m_adaraRunStatus = JoiningRun, call setRunDetails(pkt) immediately so run_number / run_start are available during the bootstrap window, queue no transition, set no back-pressure. The background thread must keep reading to complete workspace init. Once initWorkspacePart2() sets m_workspaceInitialized = true and sees m_adaraRunStatus == JoiningRun, it queues m_pendingTransition = BeginRun; the foreground then commits to Running via the normal onBeginRun() hook (joining-completion path: no cache reset, no m_deferredRunDetailsPkt needed).

• On END_RUN: enforce the single-slot invariant, queue m_pendingTransition = EndRun, set m_pauseNetRead = true, copy setRunDetails(pkt) if !haveRunNumber (unchanged). m_adaraRunStatus is not mutated here — it is advanced to NoRun later from onEndRun() (dispatched from onAfterExtract() after doExtractData() has harvested the finishing run’s events). Until that commit, runState() continues to report Running (or JoiningRun); the EndRun edge is delivered to consumers via lastTransition() and the legacy runStatus() shim, satisfying the “exactly once” delivery contract.

In rxPacket(const ADARA::AnnotationPkt &pkt), PAUSE and RESUME markers call onRunPause(true/false) directly from the background thread. This is intentional: pause state has no workspace-level side effects (it only gates event appending in rxPacket(BankedEventPkt)), so applying it immediately at the packet boundary gives the most accurate event filtering relative to the DAS timeline. The pause/resume path does not use m_pendingTransition and does not set m_pauseNetRead.

Foreground snapshot gate (m_bgThreadCaughtUp)

A new std::atomic<bool> m_bgThreadCaughtUp{false} field synchronises the background parser and the foreground extractor:

• Background writes: stored false at the start of every bufferParse() iteration; stored true at the end. receiveBytes() does not touch the flag — a background thread blocked in receive presents as “caught-up” because its in-memory state is stable.

• Foreground use in onBeforeExtract(): if m_thread.isRunning() && !m_bgThreadCaughtUp, the call throws Exception::NotYet immediately, without touching any shared state. This closes the inter-rxPacket() race window — without it, the foreground could snapshot m_pendingTransition between two rxPacket() calls in the same bufferParse() iteration.

• Background use in the pause loop: the inner pause loop short-circuits on m_bgThreadCaughtUp == false so the foreground cannot wake the background thread (by clearing m_pauseNetRead) while a parse is still in flight.

• Run-boundary reset: onEndRun() stores false immediately before setting m_adaraRunStatus = NoRun. This re-arms the first-extract synchronisation for every subsequent run, exactly mirroring the construction-time initial value: the first extractData() of each run is gated on that run’s first bufferParse(), not just the very first run.

• Test-fixture note: NoNetworkTest fixtures run with no background thread, so m_thread.isRunning() short-circuits the guard for them; no fake flag manipulation is required in tests.

extractData() — the only commit point

The body below is presented as a single extractData() for clarity. In the actual implementation it is split across the three-phase LiveListener::extractData() template method (onBeforeExtract() → doExtractData() → onAfterExtract()), with the m_backgroundException rethrow remaining the responsibility of the individual SNS getters (runState(), lastTransition() — see the pure-getters section above). onBeforeExtract() handles Phase 1 (commit a pending BeginRun edge); doExtractData() handles Phase 2/3 (workspace-init wait + EventWorkspace build + swap); onAfterExtract() handles Phase 4 (commit a pending EndRun edge, deferred until after doExtractData() so the finishing run’s events are harvested first). The exception-safety guarantees described below survive the split unchanged.

std::shared_ptr<Workspace>
SNSLiveEventDataListener::extractData() {     // conceptually
    // m_backgroundException is re-thrown in the individual SNS getters
    // (runState(), lastTransition()), not in this template method body.
    // Shown here for orientation; the base LiveListener::extractData() body
    // is simply: onBeforeExtract() → doExtractData() → onAfterExtract().

    // ---- Phase 1 (onBeforeExtract): commit a pending BeginRun --------
    {
        // Fast-path: throw NotYet immediately if the background thread is
        // mid-parse (before taking any lock).
        if (m_thread.isRunning() && !m_bgThreadCaughtUp.load(std::memory_order_acquire))
            throw Exception::NotYet("Background thread parse is in flight.");

        std::optional<RunStatus> pending;
        {
            std::lock_guard lock(m_mutex);
            // Re-check under the lock to close the TOCTOU window.
            if (m_thread.isRunning() && !m_bgThreadCaughtUp.load(std::memory_order_acquire))
                throw Exception::NotYet("Background thread parse is in flight.");
            // Both NotYet gates passed: the prior extract's edge has been
            // delivered.  Clear it now so the next tick sees nullopt.
            // m_previousExtractCompleted is false during a NotYet retry, so
            // the edge survives retries (C1 invariant).
            if (m_previousExtractCompleted) {
                m_lastTransition.reset();
                m_previousExtractCompleted = false;
            }
            pending = m_pendingTransition;
        }
        if (pending && *pending == BeginRun) {
            {
                std::lock_guard lock(m_mutex);
                m_pendingTransition.reset();
            }
            onBeginRun();
            {
                std::lock_guard lock(m_mutex);
                m_lastTransition = BeginRun;     // memoise for lastTransition()
            }
            m_pauseNetRead = false;
        }
    }

    // ---- Phase 2: wait for workspace initialisation (unchanged) -----
    static const double maxBlockTime = 10.0;
    const DateAndTime endTime = DateAndTime::getCurrentTime() + maxBlockTime;
    while (!m_workspaceInitialized && DateAndTime::getCurrentTime() < endTime) {
        Poco::Thread::sleep(100);
    }
    if (!m_workspaceInitialized) {
        throw Exception::NotYet("The workspace has not yet been initialized.");
    }
    if (m_ignorePackets) {
        throw Exception::NotYet("Waiting for a run to start.");
    }

    // ---- Phase 3: build the new EventWorkspace and swap (unchanged) -
    EventWorkspace_sptr temp = std::dynamic_pointer_cast<EventWorkspace>(
        API::WorkspaceFactory::Instance().create(
            "EventWorkspace", m_eventBuffer->getNumberHistograms(), 2, 1));
    API::WorkspaceFactory::Instance().initializeFromParent(*m_eventBuffer, *temp, false);
    temp->mutableRun().clearOutdatedTimeSeriesLogValues();
    for (auto &monitorLog : m_monitorLogs)
        temp->mutableRun().removeProperty(monitorLog);
    m_monitorLogs.clear();

    auto monitorBuffer = m_eventBuffer->monitorWorkspace();
    if (monitorBuffer) {
        auto newMonitorBuffer = WorkspaceFactory::Instance().create(
            "EventWorkspace", monitorBuffer->getNumberHistograms(), 1, 1);
        WorkspaceFactory::Instance().initializeFromParent(
            *monitorBuffer, *newMonitorBuffer, false);
        temp->setMonitorWorkspace(newMonitorBuffer);
    }
    {
        std::lock_guard lock(m_mutex);
        std::swap(m_eventBuffer, temp);
    }

    // ---- Phase 4 (onAfterExtract): commit a pending EndRun ----------
    // Deferred so the snapshot above contains the finishing run's
    // accumulated events before onEndRun() resets the buffer.
    {
        std::optional<RunStatus> pending;
        {
            std::lock_guard lock(m_mutex);
            pending = m_pendingTransition;
            // m_lastTransition is NOT cleared here; it is cleared at the
            // start of the next onBeforeExtract() after both NotYet gates
            // pass, guarded by m_previousExtractCompleted.
        }
        if (pending && *pending == EndRun) {
            {
                std::lock_guard lock(m_mutex);
                m_pendingTransition.reset();
                m_lastTransition = EndRun;   // memoise for lastTransition()
            }
            onEndRun();
            m_pauseNetRead = false;
        }
    }
    {
        std::lock_guard lock(m_mutex);
        m_previousExtractCompleted = true;   // allow next onBeforeExtract to clear
    }
    return temp;
}

Critical detail (C1)

m_lastTransition is cleared at the start of the next onBeforeExtract(), after both NotYet gates pass, guarded by m_previousExtractCompleted. The flag is set to true only at the end of onAfterExtract() — which runs only when doExtractData() returns normally. A NotYet thrown from Phase 1 (before either gate returns) or Phase 2/3 therefore leaves m_previousExtractCompleted == false, so the retry’s onBeforeExtract() preserves the edge intact. This is the C1 invariant.

Important properties:

• Each phase runs once per call. The pending transition is dequeued atomically in whichever phase claims it (Phase 1 for BeginRun, Phase 4 for EndRun); no m_transitionHandled flag is needed.

• ``BeginRun`` and ``EndRun`` are symmetric. Both are observable to the caller via lastTransition() between the extractData() that committed them and the next successful extractData(). This matters for MonitorLiveData, which reads lastTransition() after extractData() returns and uses a BeginRun edge to drive the _post workspace-rename path.

• The transition phases hold the mutex only while reading the queue, not while running the transition hook. Hooks may safely take the mutex themselves.

• Exception-safe. m_previousExtractCompleted flips to true only at the end of onAfterExtract(), which runs only after doExtractData() returns normally. Any Exception::NotYet thrown from Phase 1 (before either gate) or Phase 2/3 structurally leaves the flag false, so the deferred clear is skipped on the retry — the C1 invariant is a consequence of the template-method contract and the flag’s placement, not an extra branch. A pending EndRun is not consumed until Phase 4 completes, so a Phase 2/3 failure leaves it queued for the next extractData().

Transition hooks

void SNSLiveEventDataListener::onBeginRun() {
    std::lock_guard lock(m_mutex);

    m_workspaceInitialized = false;

    // Cache clears: exactly the set the legacy runStatus() clears.
    m_instrumentXML.clear();
    m_instrumentName.clear();
    // Note: m_dataStartTime NOT cleared on BeginRun — matches legacy.
    m_nameMap.clear();

    initWorkspacePart1();

    if (!m_deferredRunDetailsPkt) {
        // Invariant: rxPacket(NEW_RUN) must have stashed the RunStatusPkt
        // before queueing BeginRun. Reaching here means a producer queued
        // a BeginRun transition without populating m_deferredRunDetailsPkt,
        // which is an implementation error in the listener itself.
        throw std::runtime_error(
            "SNSLiveEventDataListener::onBeginRun(): "
            "m_deferredRunDetailsPkt is null — invariant violation.");
    }
    setRunDetails(*m_deferredRunDetailsPkt);
    m_deferredRunDetailsPkt.reset();

    m_adaraRunStatus = Running;   // we've crossed the edge
    // m_pauseNetRead released by the caller (onBeforeExtract) after
    // this hook returns — not here.
}

void SNSLiveEventDataListener::onEndRun() {
    std::lock_guard lock(m_mutex);

    m_workspaceInitialized = false;

    m_instrumentXML.clear();
    m_instrumentName.clear();
    m_dataStartTime = Types::Core::DateAndTime();   // cleared only on EndRun
    m_nameMap.clear();

    initWorkspacePart1();

    m_adaraRunStatus = NoRun;
    // m_pauseNetRead released by the caller (onAfterExtract) after
    // this hook returns — not here.
}

void SNSLiveEventDataListener::onRunPause(bool paused) {
    // Called from rxPacket(AnnotationPkt) which already holds m_mutex;
    // the hook does not re-lock.
    //
    // NOT dispatched through the pending-transition queue.
    // Pause state is orthogonal to run state: m_adaraRunStatus remains
    // Running while the run is paused. m_isDasPaused is read by
    // isPaused() and by rxPacket(BankedEventPkt) to gate event
    // appending.  Applying this immediately gives accurate event counts:
    // events received after the PAUSE annotation but before the next
    // extractData() call are correctly discarded.
    m_isDasPaused = paused;
}

Notes:

• The cache-clear side effects inside onBeginRun() / onEndRun() (m_instrumentXML, m_instrumentName, m_nameMap, initWorkspacePart1(), etc.) are identical to what the legacy runStatus() did. The m_pauseNetRead release has moved out of these hooks into their callers (onBeforeExtract() / onAfterExtract()), so the back-pressure flag is owned by the same scope that decided to dispatch the hook.

• onBeginRun() and onEndRun() are protected virtual and dispatched only from onBeforeExtract() and onAfterExtract() respectively. Tests can subclass the listener and override the hooks to assert they fired with the expected preconditions.

• onRunPause() is protected virtual and called only from rxPacket(AnnotationPkt) in the background thread, which already holds m_mutex. The hook therefore does not take the mutex itself. Its dispatch point differs from onBeginRun() / onEndRun() by design.

• The existing m_runPaused check in rxPacket(BankedEventPkt) is updated to reference m_isDasPaused; no other change to that function.

Background reader loop

The loop has two notable changes from the pre-refactor version.

First, the pause condition is short-circuited on m_bgThreadCaughtUp. When the flag is false (i.e. a bufferParse() iteration is in flight), the background thread never honours m_pauseNetRead — this prevents the foreground from releasing back-pressure while rxPacket() callbacks may still be mutating shared state.

Second, the m_bgThreadCaughtUp flag is stored false immediately before bufferParse() and true immediately after, framing the only window during which onBeforeExtract() must throw NotYet. receiveBytes() does not touch the flag; a background thread blocked in receive presents as caught-up.

void SNSLiveEventDataListener::run() {
    // ... unchanged setup (hello packet, etc.) ...
    while (!m_stopThread) {
        // Only honour m_pauseNetRead when no parse is in flight.
        // Short-circuit on m_bgThreadCaughtUp == false prevents a race
        // where the foreground clears m_pauseNetRead while we are still
        // inside bufferParse() mutating shared state.
        while (m_bgThreadCaughtUp.load(std::memory_order_acquire)
               && m_pauseNetRead && !m_stopThread) {
            Poco::Thread::sleep(100);
        }
        if (m_stopThread) break;

        // receiveBytes() does NOT touch m_bgThreadCaughtUp.
        // A thread blocked here presents as caught-up.
        receiveBytes();   // fills the ADARA parse buffer

        // Close the foreground snapshot window for bufferParse() only.
        m_bgThreadCaughtUp.store(false, std::memory_order_release);
        bufferParse();    // drives rxPacket() callbacks
        m_bgThreadCaughtUp.store(true, std::memory_order_release);
        // Snapshot window re-opened; m_pendingTransition is now stable.
    }
    // ... unchanged exception capture into m_backgroundException ...
}

The m_pauseNetRead back-pressure is released by onBeforeExtract() (for BeginRun) and onAfterExtract() (for EndRun) inside extractData(), so stand-alone LoadLiveData no longer deadlocks.

Note that onEndRun() also participates in the flag’s lifecycle: it stores false to re-arm the per-run first-extract gate (see the “Foreground snapshot gate” section above). The background loop itself only writes the flag around bufferParse(); onEndRun() is the only other writer.

Behaviour preservation (SNS-specific)

Behaviour	Pre-refactor	Post-refactor
runStatus() returns BeginRun exactly once at the start of a run	yes, via mutation	yes, via lastTransition() populated by extractData()
runStatus() returns EndRun exactly once at the end of a run	yes	yes
Workspace re-initialised at run boundaries	inside runStatus()	inside onBeginRun() / onEndRun()
m_dataStartTime cleared on EndRun only, not on BeginRun	yes	yes
m_instrumentXML, m_instrumentName, m_nameMap cleared at both boundaries	yes	yes
m_deferredRunDetailsPkt consumed at BeginRun	yes	yes, inside onBeginRun()
m_pauseNetRead released after the boundary is consumed	inside runStatus()	inside onBeforeExtract() / onAfterExtract(), immediately after the inner hook (onBeginRun() / onEndRun()) returns
JoiningRun mid-stream bootstrap when NEW_RUN arrives before m_workspaceInitialized	yes (as “little white lie” direct Running assignment)	yes — replaced by honest JoiningRun state; BeginRun edge queued from initWorkspacePart2() completion
m_isDasPaused flips on AnnotationPkt PAUSE / RESUME	yes, inline	yes, routed through onRunPause() in background thread
Paused events discarded at the correct packet boundary	yes	yes — m_isDasPaused flipped immediately in background thread, not deferred
isPaused() query available without calling runStatus()	no	yes (isPaused() is a const pure getter)
MonitorLiveData workspace renaming triggers on BeginRun / EndRun	yes	yes (legacy runStatus() shim returns the edge)
Stand-alone LoadLiveData produces a workspace	no (deadlocks)	yes (commit happens inside extractData())
Listener can be queried for its state without mutating it	no	yes (all queries const)

There is one behaviour that is intentionally not preserved, and it is the bug the refactor exists to fix: stand-alone LoadLiveData previously deadlocked after a run boundary; it now succeeds.

Appendix — pre-existing defect: m_ignorePackets is never set true

This is a pre-existing defect in the upstream SNSLiveEventDataListener, discovered while writing the new integration-test suite. It is not introduced by the v3 refactor; it predates the refactor by many years. It is documented here so that maintainers do not waste time hunting it during code review of the refactor PR.

Summary

SNSLiveEventDataListener::m_ignorePackets is declared with an in-class initialiser of false and is never assigned ``true`` anywhere in the codebase. As a consequence:

• The “filter packets until run start” path (m_filterUntilRunStart) is unreachable.

• The “filter packets until absolute start time” path is unreachable.

• The variable-value packet cache (m_variableMap) is populated by the rxPacket(VariableU32Pkt&) / VariableDoublePkt / VariableStringPkt overloads but is never replayed, because replayVariableCache() is only called from inside the if (!m_ignorePackets) { ... } block of ignorePacket(), which is itself reached only when m_ignorePackets is true.

• The extractData() guard if (m_ignorePackets) throw Exception::NotYet("Waiting for a run to start."); can never throw.

In short: a chunk of SNSLiveEventDataListener that exists specifically to support StartLiveData’s “from start of run” and “from absolute time” modes is dead code as currently written.

Evidence

The only writes to m_ignorePackets are clears inside ignorePacket() — there is no m_ignorePackets = true; anywhere in the tree. start() parses the requested startTime to decide which filter mode to use, but only sets m_filterUntilRunStart, never m_ignorePackets:

void SNSLiveEventDataListener::start(const Types::Core::DateAndTime startTime) {
    m_startTime = startTime;
    if (m_startTime.totalNanoseconds() == 1000000000) {
        // "from start of previous run" sentinel
        m_filterUntilRunStart = true;
        // m_ignorePackets = true;   // <-- MISSING
    }
    // else if (m_startTime != DateAndTime()) {
    //     m_ignorePackets = true;   // <-- MISSING (time-based filter)
    // }
    m_thread.start(*this);
}

The else branch in ignorePacket() whose comment reads “Filter based solely on time” is, today, unreachable without the missing assignment in start().

Provenance

This was checked against multiple points in the upstream history. The defect is present in:

• mantidproject/mantid @ current main,

• mantidproject/mantid @ a86c1e02 (~2018).

The defect is therefore pre-existing in upstream and predates any of the work on the current refactor.

Impact

• StartLiveData “Now” mode (no StartTime, no historical replay) is unaffected — that path was never supposed to set m_ignorePackets.

• StartLiveData “from start of run” mode: historical packets sent by SMS that precede the most recent NEW_RUN are not filtered out. The user sees whatever SMS happens to send.

• StartLiveData with a non-default StartTime: packets older than m_startTime are not filtered out.

• Variable-value packets that arrive during what should be the filtered prefix are not deferred-and-replayed; they are processed immediately, in arrival order, with no end-of-filter coalescing.

Why it has gone unnoticed: the only existing unit-test suite (SNSLiveEventDataListenerNoNetworkTest.h) does not exercise the filter paths, and the disabled legacy integration suite was network-dependent and unregistered. The behavioural difference is subtle: extra historical events at the front of the stream rather than a hard failure.

Recommended fix (separate PR)

In SNSLiveEventDataListener::start():

void SNSLiveEventDataListener::start(const Types::Core::DateAndTime startTime) {
    m_startTime = startTime;

    if (m_startTime.totalNanoseconds() == 1000000000) {
        // "From start of previous run" sentinel: replay everything,
        // then filter out all packets older than the next NEW_RUN.
        m_filterUntilRunStart = true;
        m_ignorePackets       = true;
    } else if (m_startTime != Types::Core::DateAndTime()) {
        // Absolute-time filter: drop everything older than m_startTime.
        m_ignorePackets = true;
    }
    // else: "Now" mode — no historical filtering, m_ignorePackets
    // stays false (the default).

    m_thread.start(*this);
}

The fix must be accompanied by:

• A targeted no-network unit test for start() itself, asserting that the correct combination of m_ignorePackets / m_filterUntilRunStart is produced for each of the three startTime inputs (sentinel, absolute past time, default-constructed “now”).

• Re-enabling any integration tests that were TS_SKIP-guarded pending this fix.

• A conversation with the SNS team confirming the intended semantics — in particular, when the sentinel 1e9 ns value is used, is the intent really to ignore all packets until a NEW_RUN, or is the intent to ignore everything older than the previous run’s NEW_RUN? The dead code implies the former; the comment in start() implies the latter.

New integration-tests that depend on the filter paths working should guard those tests with TS_WARN("XFAIL:..."), citing this defect.

Testing

Unit tests — SNSLiveEventDataListenerNoNetworkTest.h

These tests exercise the state machine and hooks with no background thread and no network connection. All live in Framework/LiveData/test/SNSLiveEventDataListenerNoNetworkTest.h.

• test_field_rename_does_not_break_pause_handling

• test_onBeginRun_throws_when_deferred_run_details_missing

• test_onRunPause_is_callable_and_toggles

• test_runState_pure_getter_does_not_mutate

• test_listenerState_initially_disconnected

• test_lastTransition_initially_null

• test_isPaused_initially_false

• test_isPaused_orthogonal_to_runState

• test_onBeforeExtract_dispatches_BeginRun_to_hook

• test_onAfterExtract_dispatches_EndRun_to_hook

• test_no_transition_no_hook

• test_lastTransition_survives_NotYet_retry

• test_lastTransition_cleared_after_successful_extract

• test_lastTransition_reports_EndRun_then_null_after_success

• test_legacy_runStatus_returns_edge_then_state

• test_background_exception_propagates_from_all_getters

• test_rxRunStatusPkt_newRun_throws_when_slot_occupied

• test_rxRunStatusPkt_endRun_throws_when_slot_occupied

Integration tests — SNSLiveEventDataListenerTest.h

These tests spin up an in-process mock SMS server (Unix-domain socket) and drive the full packet-parse path including the background reader thread. All live in Framework/LiveData/test/SNSLiveEventDataListenerTest.h. Key tests include (the file is the authoritative list):

• test_connect_succeeds_over_uds

• test_singleRun_extractsEventsAndRunNumber

• test_fullRun_beginExtractEndExtract

• test_runNumber_proposalId_title_propagate

• test_lastTransition_preservedAcrossNotYet

• test_notYet_whenGeometryDelayed

• test_consecutiveNewRun_surfacesRuntimeError

• test_newRunEndRun_backPressureProducesReadWaitThenCleanEndRun

• test_pauseResume_orthogonalToRunState

• test_pausedEvents_droppedByDefault

• test_pausedEvents_keptWhenConfigured

• test_filterUntilRunStart_dropsPreRunPackets

• test_variableCache_replayedAfterStartCondition

• test_bgThreadCaughtUp_throwsNotYet_whenBgThreadStillReceiving

• test_bgThreadCaughtUp_proceeds_afterCaughtUp

• (plus additional coverage of monitors, bad pixels, disconnect, etc.)

Integration tests — SNSLiveEventDataListenerAlgorithmIntegrationTest.h

These tests exercise the full LoadLiveData / MonitorLiveData algorithm stack on top of the listener. Both live in Framework/LiveData/test/SNSLiveEventDataListenerAlgorithmIntegrationTest.h.

• test_LoadLiveData_standalone_no_deadlock — drives a BeginRun boundary through the complete LoadLiveData algorithm; asserts the algorithm completes without deadlocking and produces a workspace. This is the regression test for the bug that motivated v3.

• test_MonitorLiveData_workspace_renaming_unchanged — drives a NoRun → BeginRun → Running → EndRun → NoRun sequence; asserts the output workspace is renamed with the correct suffix at each boundary using the unmodified MonitorLiveData, proving backward compatibility.

Legacy tests — SNSLiveEventDataListenerLegacyTest.h

The only pre-existing tests for the SNSLiveEventDataListener were in the original network-dependent test suite (testProperties, testStart, testExtractData, testThreadSafety) that required a live SEQUOIA instrument connection. Previously these tests were not registered in CMakeLists.txt, and therefore did not run in CI. After this refactor, this file is retained as a historical reference only; the integration and unit test files above supersede it.

Further reading

• Live-Listener API Migration Guide (v3 refactoring) — the generic migration guide and per-listener worked examples.

• Framework/LiveData/inc/MantidLiveData/SNSLiveEventDataListener.h

• Framework/LiveData/src/SNSLiveEventDataListener.cpp

• Framework/API/inc/MantidAPI/LiveListener.h — extractData() template method.

• Framework/API/inc/MantidAPI/ILiveListener.h — base-class interface.
